Wireless Mesh AP

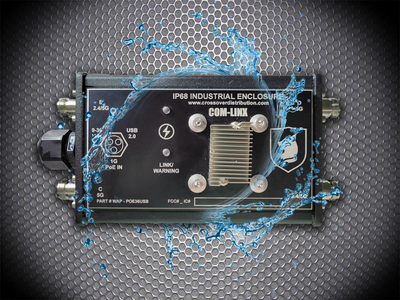

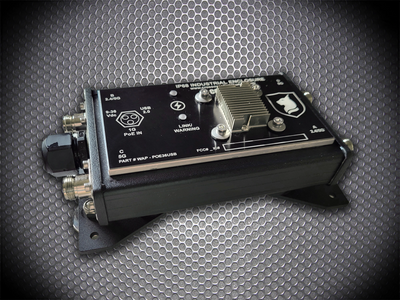

Com-Linx enclosures are purposely built to protect your delicate electronics from water ingress, over-and-under voltage, over-and-under current. Featuring a sleek design for deployment indoors or outdoors, in even the most demanding of environments.
Multiple installation options’ and tool-free adapters make deployment
possible by just about anyone.
Start with three Mesh AP‘s and effortlessly scale to hundreds. Capable of delivering wired-like user experiences, unsurpassed reliability and industry leading support.
Outstanding Features:
-Power Supply Meets EN 55032 Class B
-High Efficiency up to 89%
-Under Voltage Lock-out Circuit
-1-Port RJ45 100W PoE Patch Cord - 10GbE STP Network Cable
-18~75VDC or 9~36VDC Versions Available
-IP68, Rugged High-Strength Metal Case
- -40°C to 80°C (-40°F to 176°F) Wide Operating Temperature
Specifications
-IP68 Aluminum Enclosure
-Adjustable Mounting Blocks for Easy Installation
-4x Antenna Connections
-1x 1Gbps PoE in CAT6 to RJ45 Adapter, 1x USB 2.0 to Deutsch, 1x 3 wire Conductor Cable for Power
Power Consumption:
Input Power: 18~75VDC or 9~36VDC Versions Available
Power Consumption: 1W, typical 14W, MAX: 30W
Output Power: 12VDC at 1A
Protection Input: Over & Under-Voltage & Over-Current
Protection Output: Over-Current, Over-Voltage, and Short-Circuit - Hiccup, Continuous, Self Recovery
Over Temp: -Protection Mode: 115° typ. (Automatic Recovery)
Protection Switch Off: -Measurement Point: Case
Safety Specifications:
Standards:
EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1
EMI Emissions: EN 50121-3-2 (EMC For Rolling Stock)
-Conducted Emissions: EN 55032 Class B (internal filter)
-Radiated Emissions: EN 55032 Class B (internal filter)
EMS Immunity:
EN 50121-3-2 (EMC For Rolling Stock)
-Electrostatic Discharge:
Air: EN 61000-4-2, +8 kV, perf. criteria A
Contact: EN 61000-4-2, +6 kV, perf. criteria A
-RF Electromagnetic Field:
EN 61000-4-3, 10V/m, perf. criteria A
-EFT (Burst) / Surge:
EN 61000-4-4, +2 kV, perf. criteria A
EN 61000-4-5, +2 kV, perf. criteria A
-Conducted RF Disturbances:
EN 61000-4-8, 100 A/m, perf. criteria A
-PF Magnetic Field:
Continuous: EN 61000-4-8, 100 A/m, perf. criteria A
1 s: EN 61000-4-8, 1000 A/m perf. criteria A
-Mechanical Characteristics:
Dimension(LxHxW): 6.3 X 1.26 X 4.09 inches
