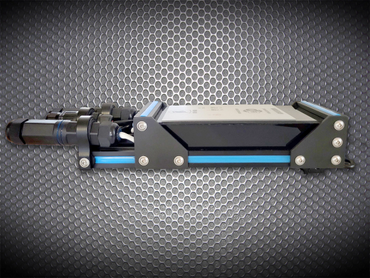

COM-LINX wAP

The wAP is a small weatherproof wireless access point for connecting your mobile devices. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else since this frequency is less cluttered.

Data rate - 867 Mbit/s

Number of chains - 2

Standards - 802.11a/n/ac

Antenna gain dBi - 2.5

Generation - Wi-Fi 5

WIFI speed - AC1200

Data rate - 300 Mbit/s

Number of chains - 2

Standards  - 802.11b/g/n

Antenna Gain dBi - 2.5

Generation - Wi-Fi 4

Wireless Capabilities 2.4 Ghz

10/100/1000 Ethernet ports - 2

DC Voltage - 10-57 V

Max power consumption - 9 W

Cooling type - Passive

PoE in - 802.3af/at

PoE in input Voltage - 18-57 V

2.4 GHz    TX         RX

1MBit/s      25        -100

11MBit/s     25         -94

6MBit/s      25        -96

54MBit/s    19        -78

MCS0         25        -96

MCS7          18        -73

5 GHz        TX        RX

6MBit/s      24       -96

54MBit/s    20       -80

MCS0         24        -96

MCS7          19        -75

MCS9          17        -70

Certification - CE, FCC, IC, EAC, ROHS

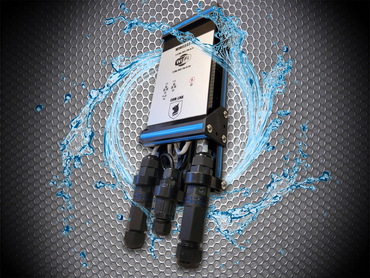

IP Rating - IP67

PCB temperature monitor - Yes

Voltage Monitor - Yes
